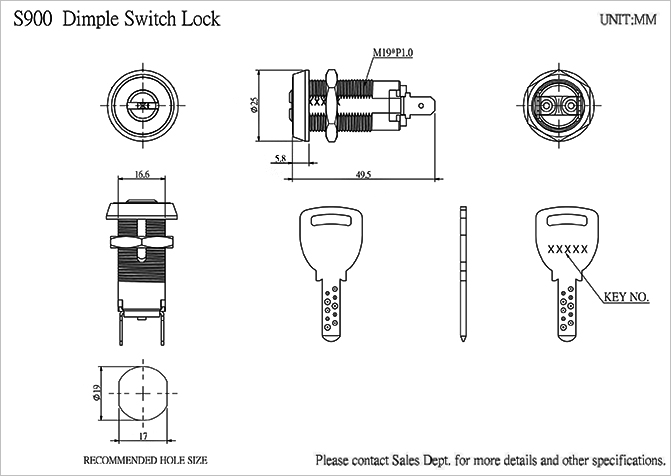

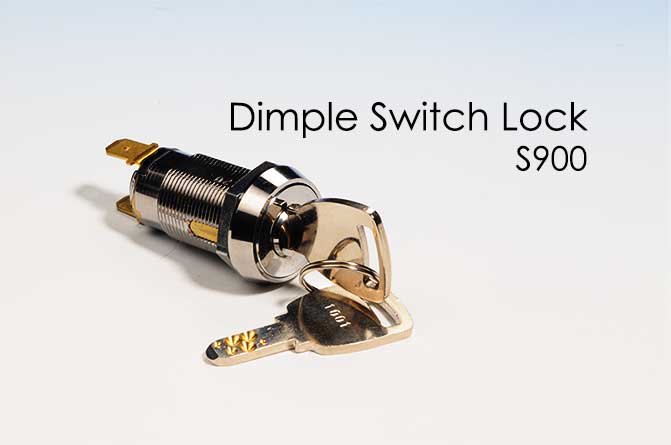

Dimple Switch Lock (S900)


















Specifications:
  • Contact Rating: 4A 125VAC, 2A 250VAC.
  • Contact Resistance: 10 Milli - Ohms Max.
  • Insulation Resistance: 500 Meg - Ohms Min. (500VDC)
  • Dielectric Strength: 1,500VAC - 1 Minute.











Features:
  • Brass housing and cylinder
  • Bright chrome plated standard.
  • 6 pin tumbler mechanism.
  • Brass keys, nickel plated.
  • Key withdrawals in one position only.
  • Silver plated contacts and terminals.
  • S900 position (off-on) 2 tubular terminals, spring loaded for momentary contact.
  • Hex nut mounted.
  • 3,500 combinations available.
